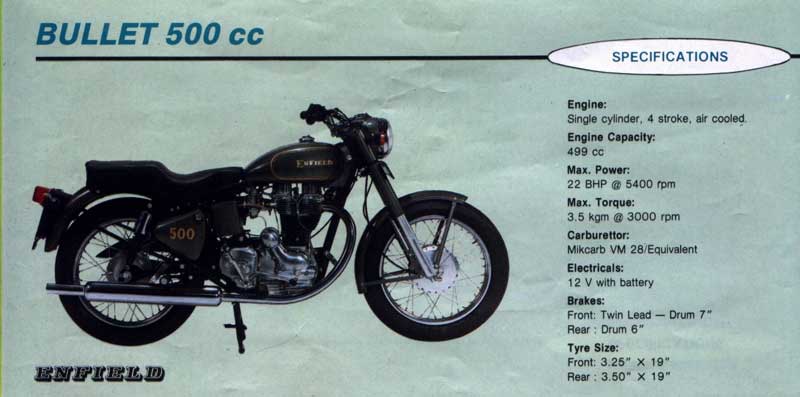

SPECIFICATIONS: Bullet 500

ENGINE

FOUR STROKE, OHV, SPARK IGNITION, AIR COOLED, SINGLE CYLINDER

BORE & STROKE

84 X 90 MM

CUBIC CAPACITY

499 CC

COMPRESSION RATIO

6.5:1

CARBURETOR

MICARB VM 28

ENGINE OUTPUT

22 BHP @ 5400 RPM

MAX. TORQUE

35.9 NM @ 3000 RPM

ELECTRICAL

12 VOLTS, AC/DC SYSTEM

IGNITION

BATTERY COIL IGNITION

BATTERY

12V, 5AH, LEAD ACID

LUBRICATION

DRY SUMP, PRESSURE FEED

PUMP

POSITIVE DISPLACEMENT, DISC & PLUNGER TYPE

TRANSMISSION

4 SPEED – 1 UP & 3 DOWN

CLUTCH

MULTIPLE, WET TYPE

STARTING

KICK START

SUSPENSION

FRONT

TELESCOPIC, HYDRAULIC DAMPING

REAR

SWING ARM WITH ADJUSTABLE SHOCK ABSORBERS

BRAKES

FRONT

TWIN LEAD, INTERNAL EXPANDING, 7"

REAR

INTERNAL EXPANDING, 6"

TIRES

FRONT

3.25" X 19"

REAR

3.50" X 19"

FUEL TANK CAPACITY/RESERVE

14.5 LTRS. / 1.25 LTRS.

FUEL CONSUMPTION

36 - 38 KM/LITER (UNDER IDEAL RIDING CONDITIONS)

DIMENSION: L X W X H

2120 X 750 X 1080 MM

WHEEL BASE

1370 MM

GROUND CLEARANCE

140 MM

SADDLE HEIGHT

760MM / 30"

MAXIMUM SPEED

120 KM/Hour

DRY WEIGHT

168 KG
